SAFE DURABLE Good ELEVATOR
Volvo series home elevators uphold the people-oriented values, promote the concept of caring for others, for each family to create a convenient life for everyone as a mission.
Basic Parameters | |||||||||
Name | Host Type | Stops | Min Well Size | Max Well Size | Rated Weight(kg) | Rated Speed(m/s) | Oh（mm) | Pit（mm) | |
Width*Depth（HW*HD）mm | |||||||||
non-sightseeing | Volvo | Tractor Gantry Ladder | 3 Floors 3 Stops（Height 3.2m） | 1150*1150 | 1800*1800 | 400 | 0.4 | 3000(Min) | 200(Min) |
3600(Regular) | 300(Regular) | ||||||||
If the site size is below the minimum value given, please contact the Technical review | |||||||||
Type： Tractor Gantry Ladder |

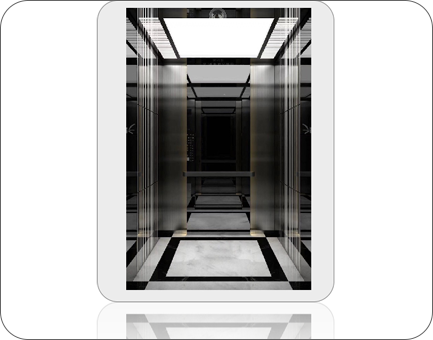

Car Wall： Art/Stainless Steel Car Wall |

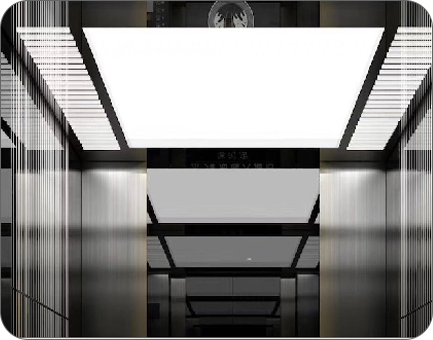

Ceiling： Stainless Steel Ceiling /Downlight |
Floor： Wooden Floor |

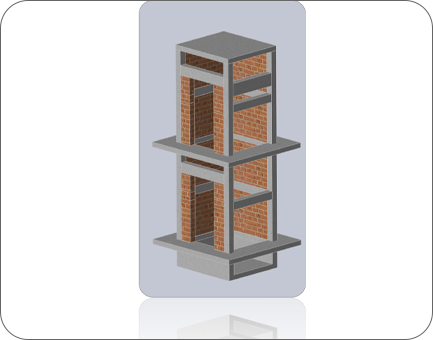

Hoistway： Brick-Concrete Hoistway |

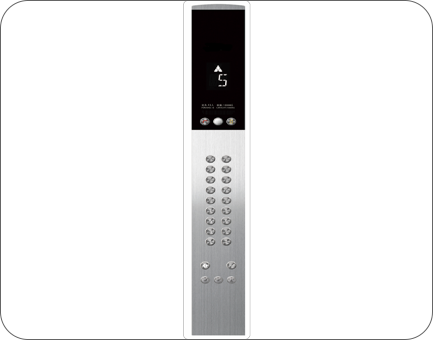

Human-computer Interface： Wall Mounted COP【7 Inch TFT+Mechanical Push Button】 |

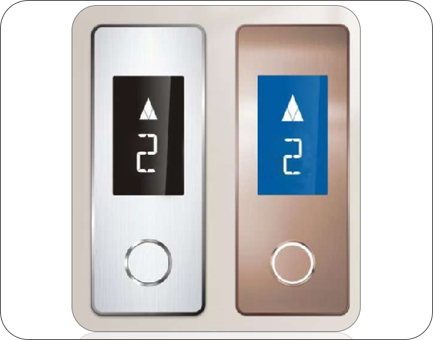

Hall Door Call： 4.3 Inch High Definition Picture Machine+Mechanical Push Button |

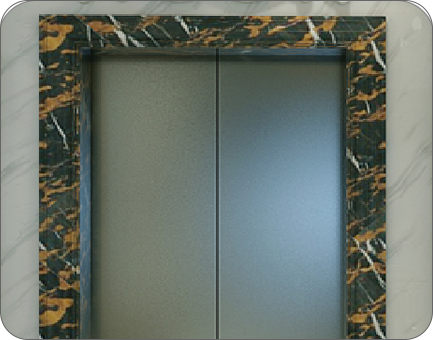

Opening Modern： Automatic Door |
Clean and convenient Good Privacy |
Durable Stainless Steel Car Wall， Elevator Decoration Can Be Customized |
HD Screen，Fingerprint/Password Access Control 、 Support Multiple Language |
Intelligent Safety System，ARD Function Can Ensure In case of power failure，The Elevator arrives at the nearest floor. |
